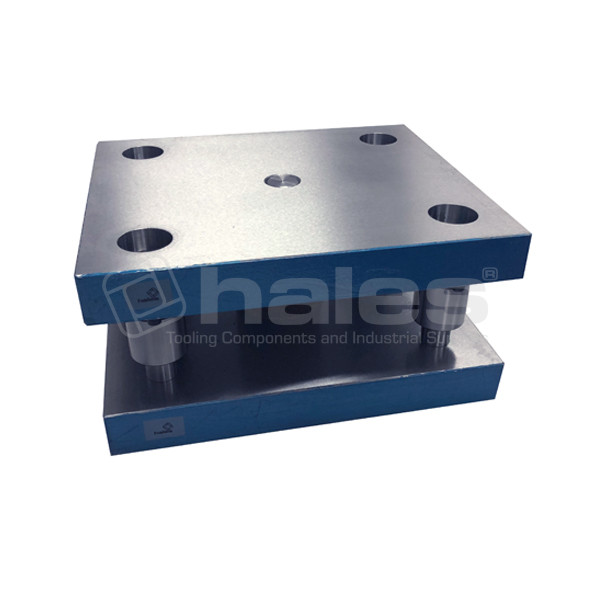

4 Pillar Steel Die Sets
4 Pillar Steel Die Sets
Get a Quote
| SKU | Die Area A | Die Area B | Shank Dia. C | Pin Length L | E | G | H | J | K | P | D | BSF U | Pin Dia. O | QTY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H4PS-106A | 10 | 5 1/2 | 2 | 5 3/4 | 187.3 | 276 | 323.9 | 40.0 | 40.0 | 44.45 | 235 | 1 1/4 | 0.9855 |
|
| H4PS-126A | 12 | 5 1/2 | 2 | 5 3/4 | 193.7 | 289 | 374.7 | 40.0 | 40.0 | 53.97 | 279.4 | 1 1/4 | 1.2355 |
|
| H4PS-128A | 12 | 7 1/2 | 2 | 5 3/4 | 244.5 | 340 | 374.4 | 40.0 | 40.0 | 53.97 | 279.4 | 1 1/4 | 1.2355 |
|
| H4PS-146A | 14 | 5 1/2 | 2 | 5 3/4 | 193.7 | 289 | 425.5 | 40.0 | 40.0 | 53.97 | 330.2 | 1 1/4 | 1.2355 |
|
| H4PS-1410A | 14 | 9 1/2 | 2 | 5 3/4 | 295.3 | 390 | 425.5 | 40.0 | 40.0 | 53.97 | 330.2 | 1 1/4 | 1.2355 |
|
| H4PS-166A | 16 | 5 1/2 | 2 | 5 3/4 | 193.7 | 289 | 476.3 | 40.0 | 40.0 | 53.97 | 381 | 1 1/4 | 1.2355 |
|
| H4PS-168A | 16 | 7 1/2 | 2 | 5 3/4 | 257.2 | 340 | 476.3 | 40.0 | 40.0 | 53.97 | 381 | 1 1/4 | 1.2355 |
|
