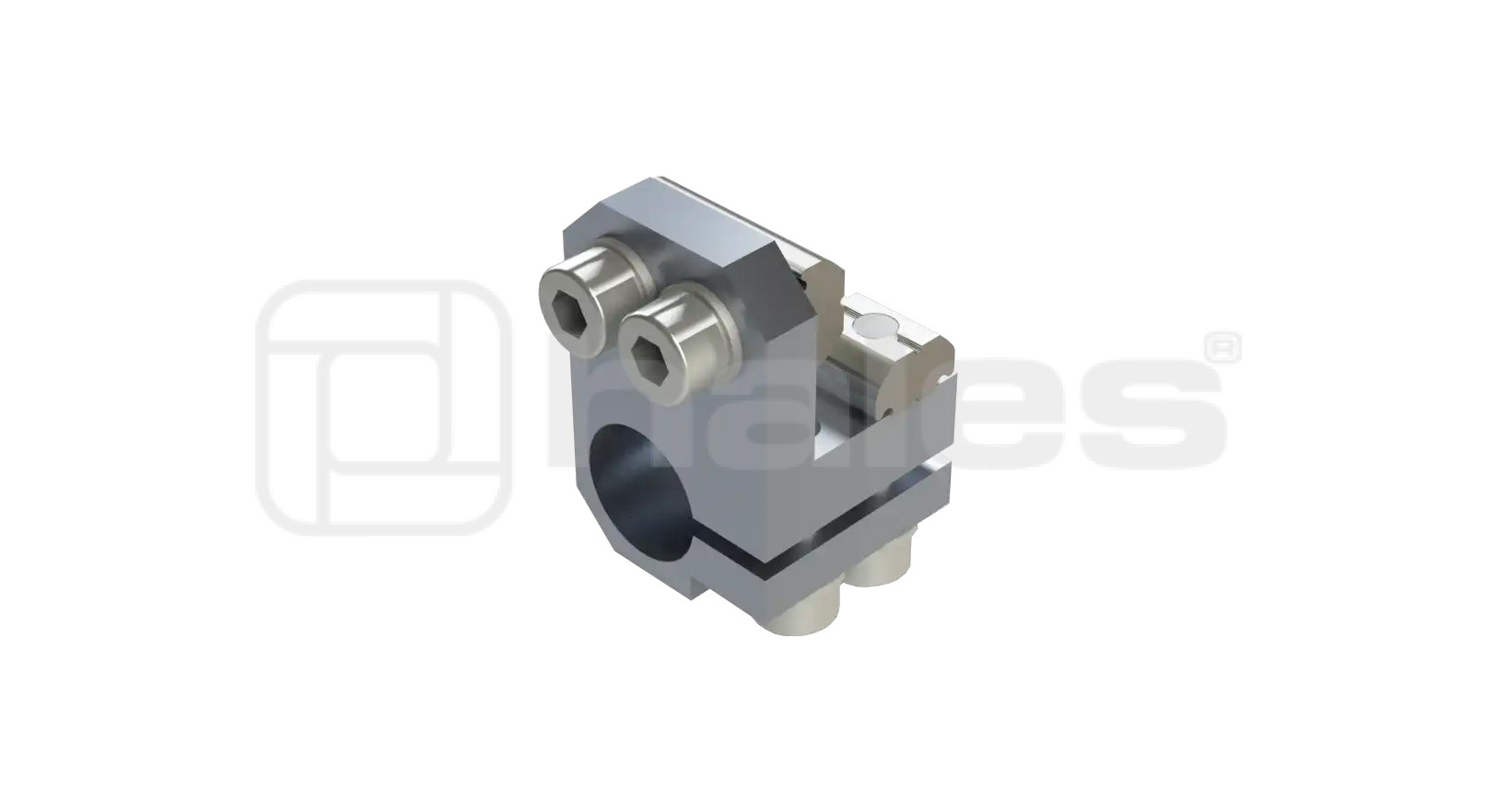

Heavy duty clamp.
Minimises deflection due to wrap around connection.

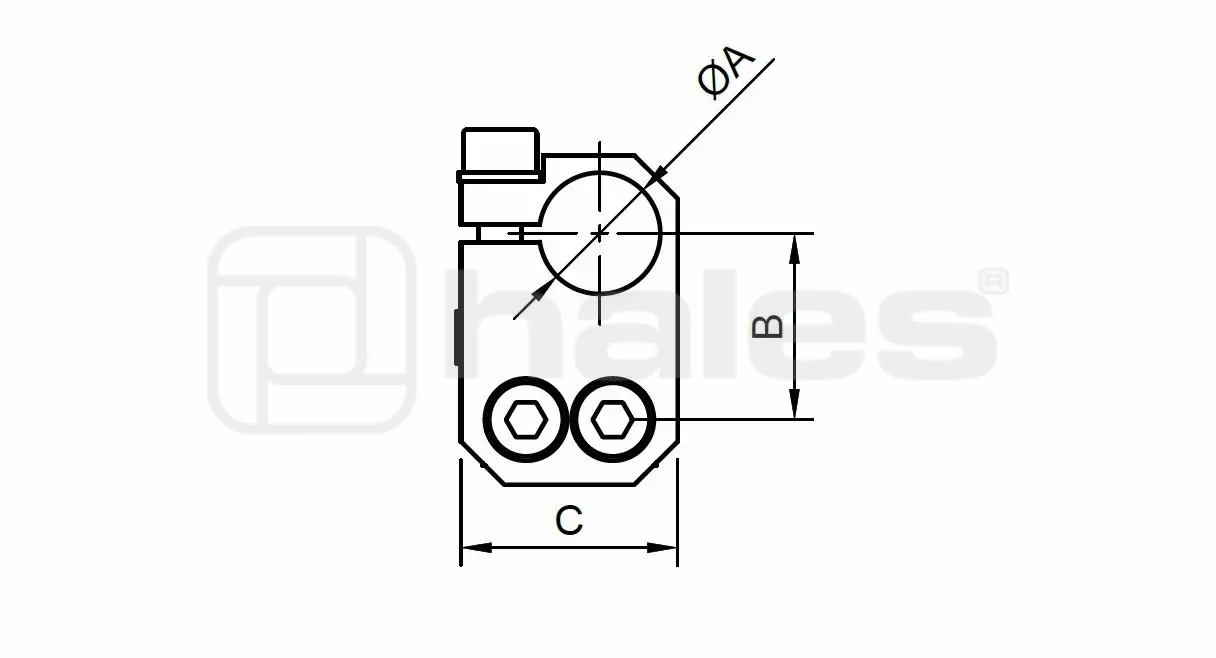

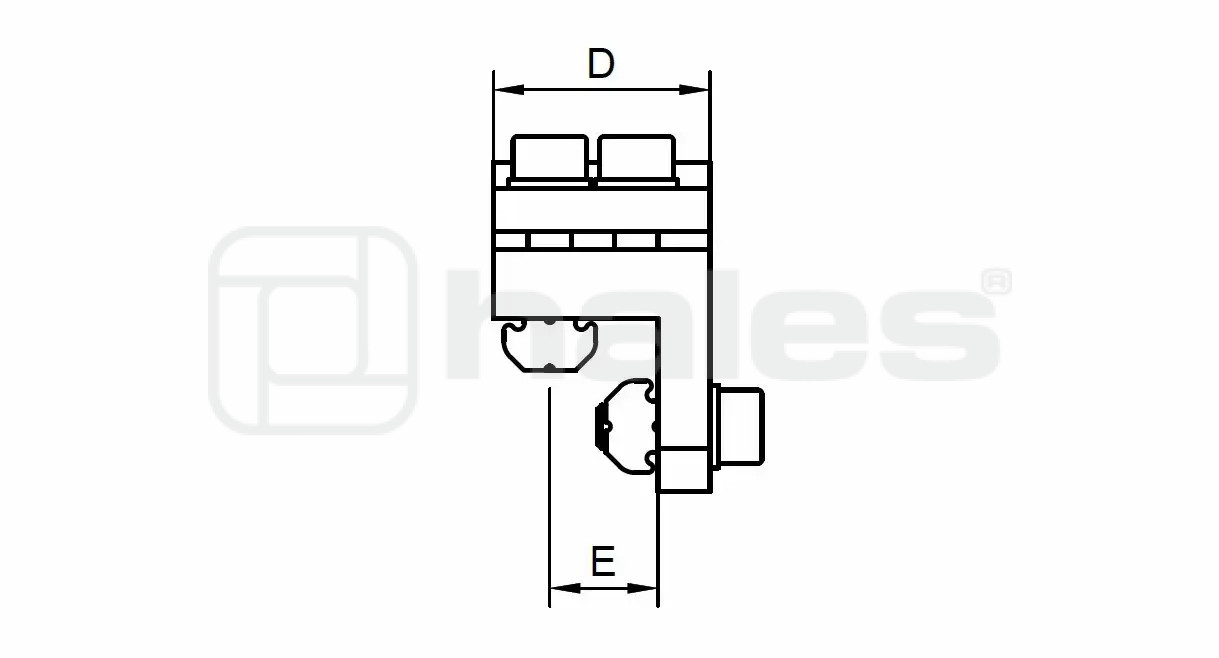

| SKU | A | B | C | D | E | Weight g | QTY |
|---|---|---|---|---|---|---|---|
| ACH.10.L | 10 | 16 | 20 | 20 | 18 | 25 |
|
| ACH.10.X | 10 | 19.5 | 25 | 25 | 12.5 | 50 |
|
| ACH.14.X | 14 | 21.5 | 25 | 25 | 12.5 | 51 |
|
| ACH.20.X | 20 | 24.5 | 32 | 30 | 12.5 | 77 |
|
| ACH.20.J | 20 | 33 | 35 | 40 | 20 | 105 |
|
| ACH.30.J | 30 | 39 | 45 | 45 | 20 | 162 |
|
