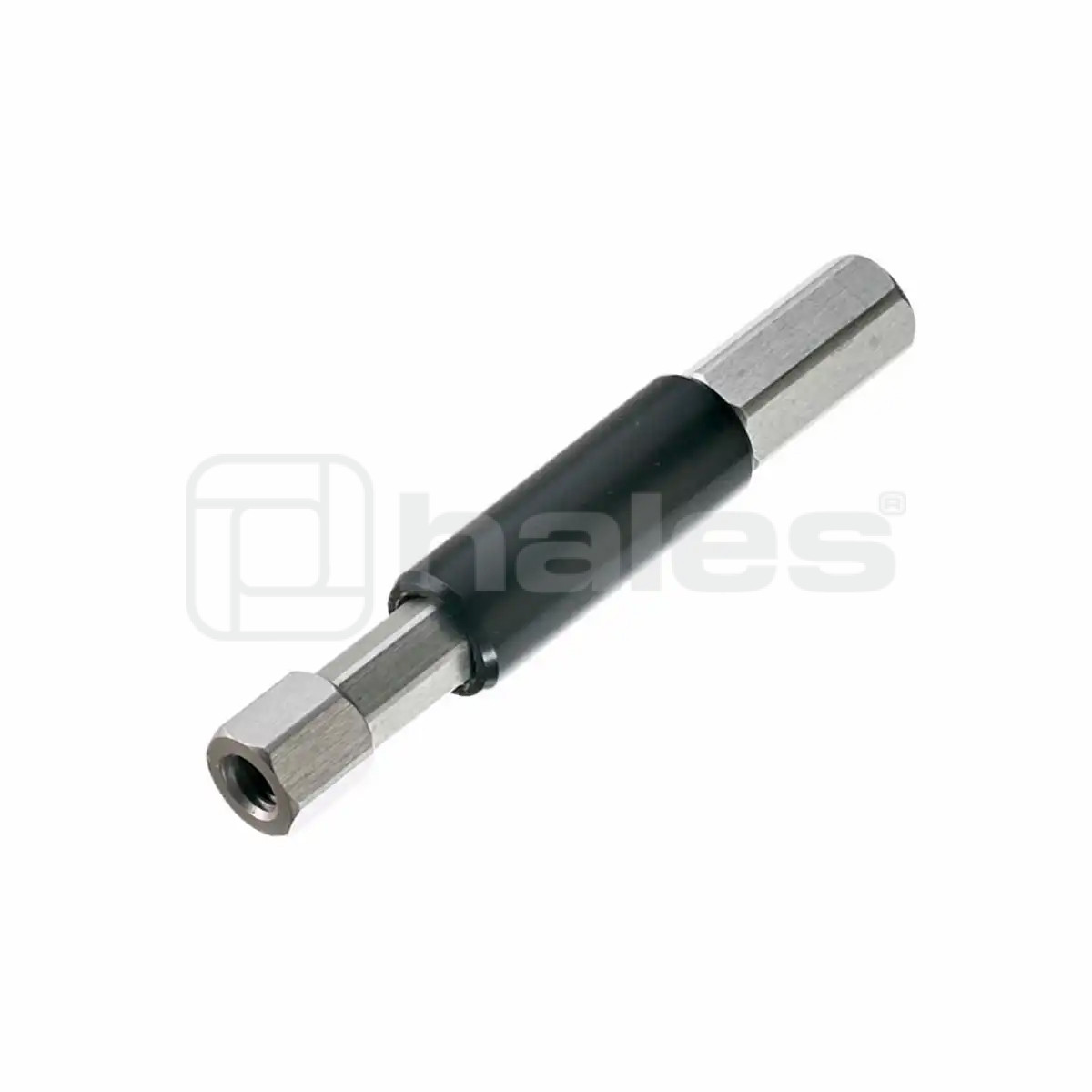

Rod For Vacuum Cups
Body and rod made of anodised aluminium. Non rotative.
Get a Quote
| SKU | A | B | C | G1 | G2 | H | F (N) | Weight g | QTY |
|---|---|---|---|---|---|---|---|---|---|
| MP.SDN.1010 | 10 | 61 | 26 | M5 | M5 | 10 | 3,6 | 8 |
|
| MP.SDN.1025 | 10 | 91 | 41 | M5 | M5 | 25 | 3,7 | 11 |
|
| MP.SDN.1420 | 14 | 103 | 42 | G 1/8 | G 1/8 | 20 | 8,9 | 25 |
|
| MP.SDN.1435 | 14 | 135 | 60 | G 1/8 | G 1/8 | 35 | 9,5 | 32 |
|
| MP.SDN.2025 | 20 | 114 | 55 | G 1/8 | G 1/8 | 25 | 11 | 63 |
|
| MP.SDN.2050 | 20 | 167 | 82 | G 1/8 | G 1/8 | 50 | 11,4 | 81 |
|
| MP.SDN.2025.14 | 20 | 114 | 55 | G 1/4 | G 1/4 | 25 | 11 | 59 |
|
| MP.SDN.2055.14 | 20 | 161 | 82 | G 1/4 | G 1/4 | 50 | 11,4 | 77 |
|
