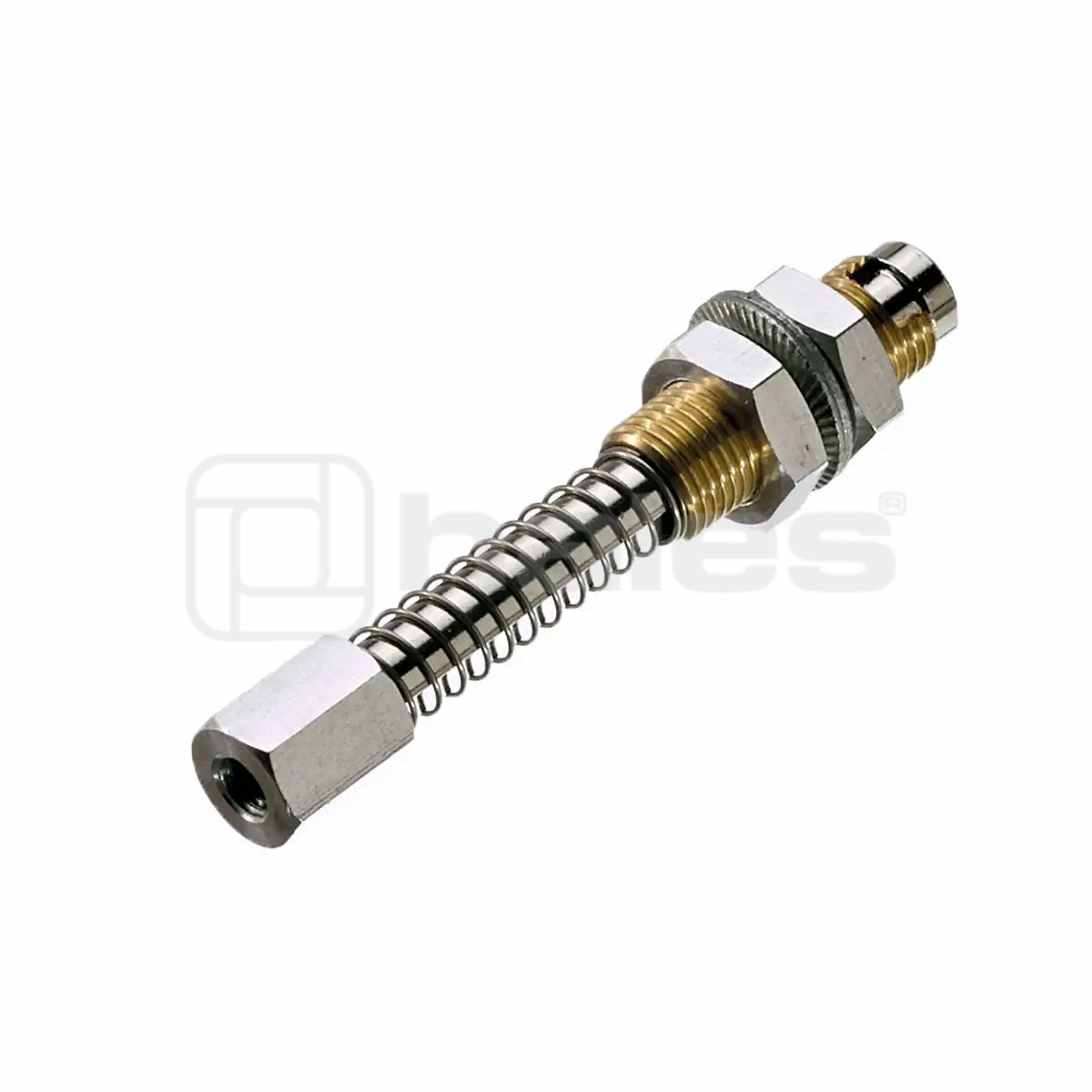

Spring Loaded Vacuum Cup Arm
Spring: Steel.
Sliding parts: Chrome plated brass.
Terminal Parts: Anodised aluminium.
Get a Quote

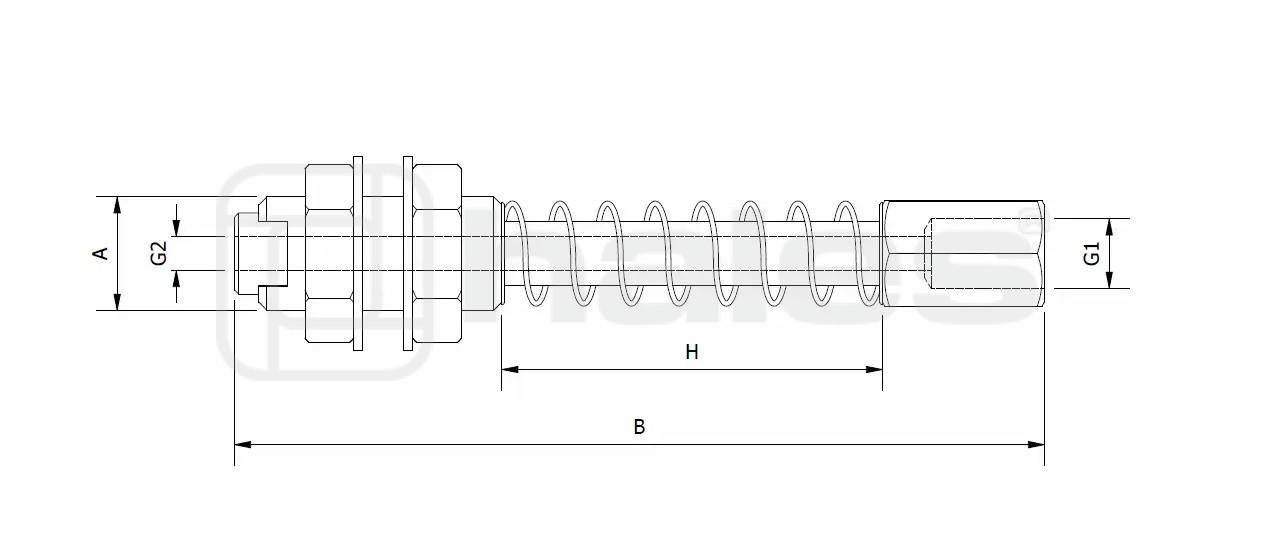

| SKU | A | B | G1 | G2 | H | F (N) | Weight g | QTY |
|---|---|---|---|---|---|---|---|---|
| LC.M10.20 | M10x1 | 70 | M5 | M5 | 20 | 3,4 | 36 |
|
| LC.M12.20 | M12x1.25 | 77 | G 1/8 | M5 | 20 | 6 | 40 |
|
| LC.M14.38 | M14x1.5 | 100 | G 1/8 | M5 | 38 | 23,2 | 71 |
|
| LC.M20.48 | M20x1.5 | 125 | G 1/4 | G 1/8 | 48 | 16,7 | 189 |
|
