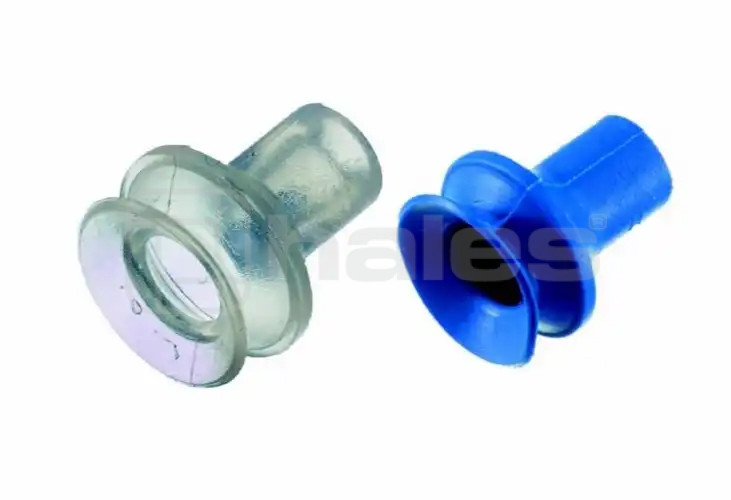

Vacuum Cups 1.5 Bellow - B Series
Get a Quote

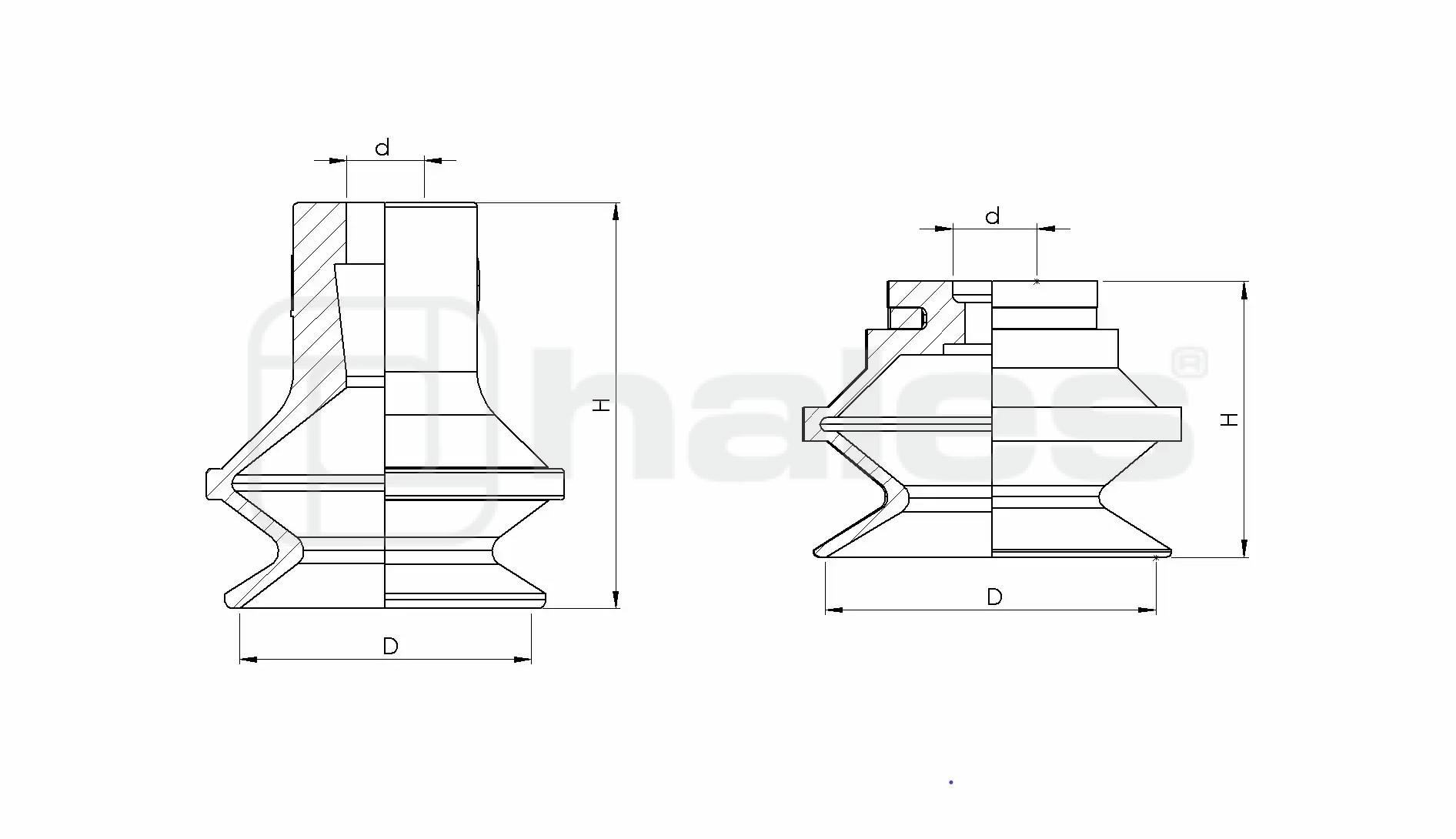

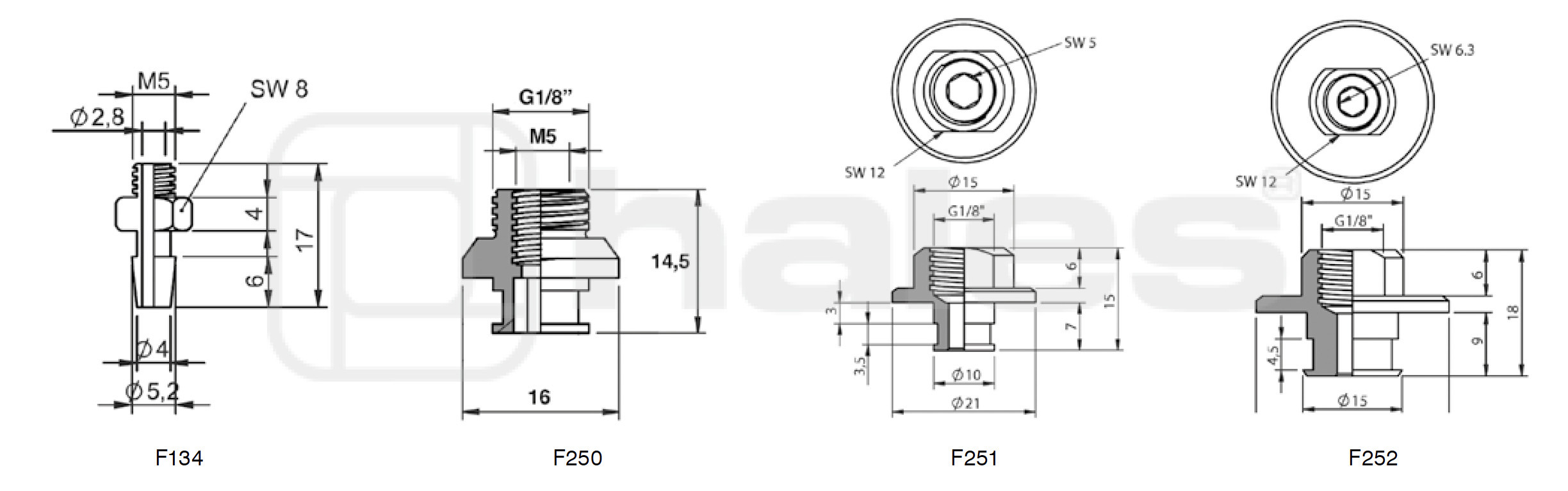

| SKU-Silicone | SKU-TempFlex | D | D1 | d | H | Fitting | Fitting | QTY |
|---|---|---|---|---|---|---|---|---|
| B05S | B05HT | 5 | - | 2.6 | 9,5 | - | 130.591 |
|
| B08S | B08HT | 8.8 | - | 2 | 12 | - | 130.591 |
|
| B11S | B11HT | 11.0 | - | 4 | 17 | F134 | 130.003 |
|
| B16S | B16HT | 16.0 | - | 4 | 19 | F134 | 130.003 |
|
| B20S | B20HT | 21.5 | 24.0 | 4.8 | 20 | F250 | - |
|
| B30S | B30HT | 33.0 | 36.0 | 6 | 26 | F250 | - |
|
| B40S | B40HT | 42.0 | 46.0 | 7 | 28 | F251 | - |
|
| B50S | B50HT | 52.0 | 58.0 | 10.5 | 35 | F252 | - |
|
