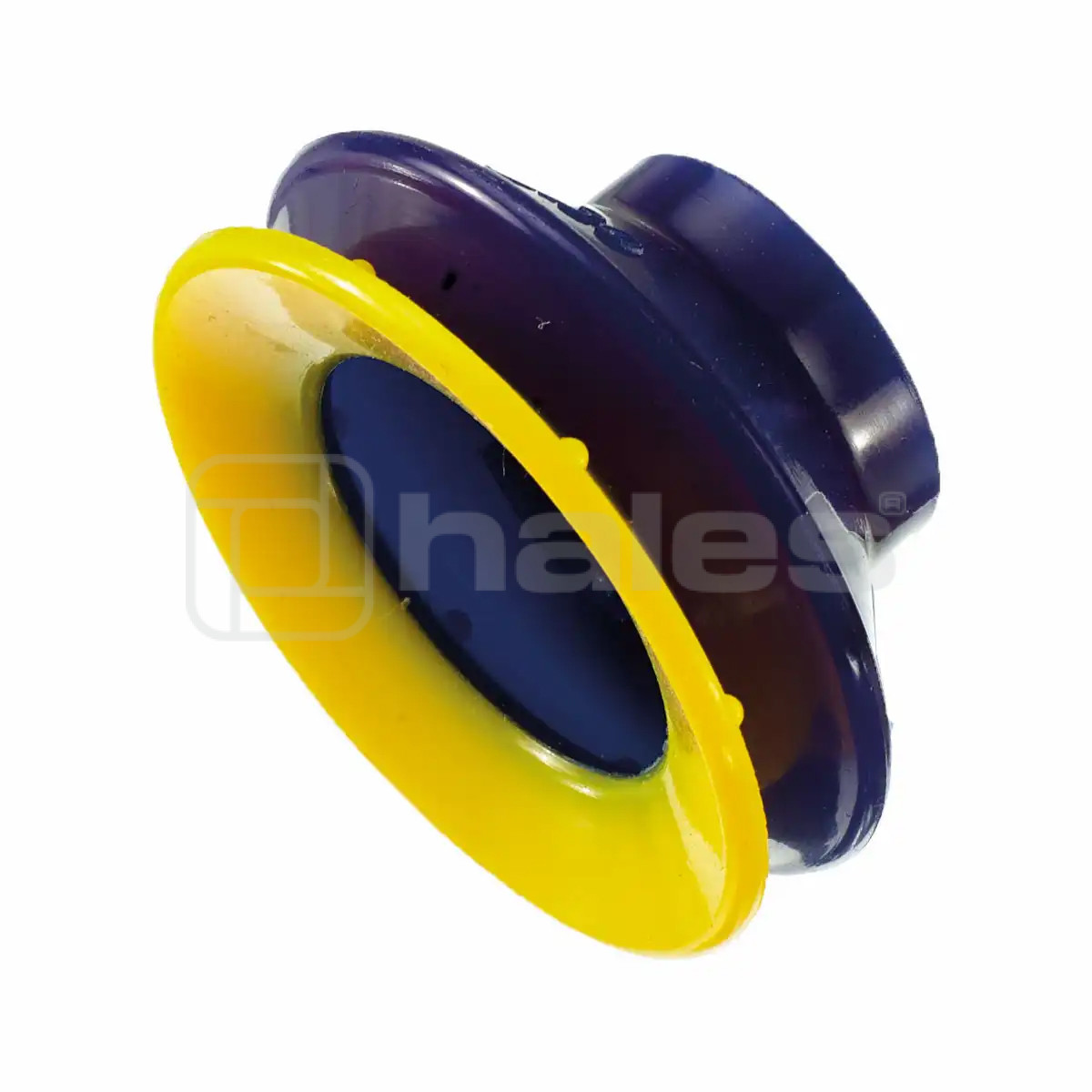

Vacuum Cups 1.5 Bellow - B Series Multiflex
Multiflex vacuum cups offer outstanding advantages
• Extremely high wear resistance
• Very high lifting force
• Best static friction qualities
• No sticking tendency
• Elasticity remains unchanged for minus temperatures
• Working temperatures from -20°C to + 80°C
• Anti marking
Get a Quote

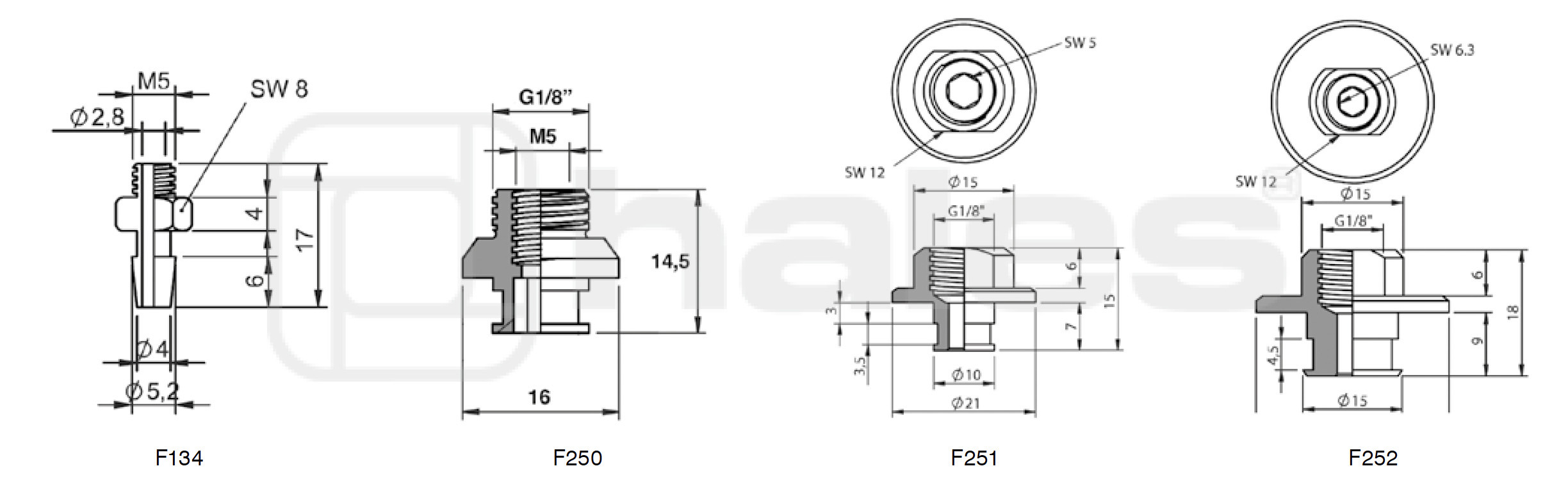

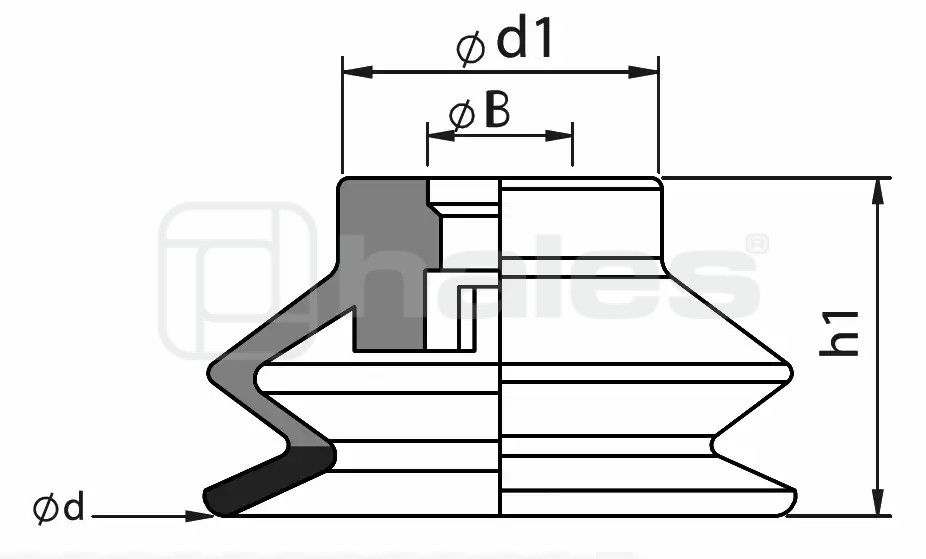

| SKU | d | B | d1 | h1 | Hardness | Fitting | QTY |
|---|---|---|---|---|---|---|---|
| B15-10MF | 10 | 3,9 | 9 | 16,5 | 40 | F134 |
|
| B15-16MF | 16 | 3,9 | 9 | 19 | 30/60 | F134 |
|
| B15-20MF | 21 | 5,2 | 12 | 18 | 30/60 | F250 |
|
| B15-30MF | 31 | 6,5 | 16,8 | 17 | 30/60 | F251 |
|
| B15-40MF | 41 | 6,3 | 22,4 | 22,4 | 30/60 | F251 |
|
| B15-50MF | 51 | 10,5 | 28 | 29,2 | 30/60 | F252 |
|
