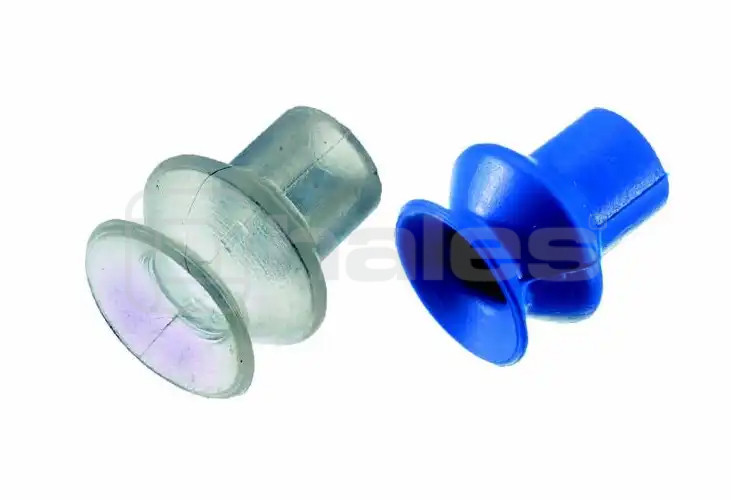

Vacuum Cups 1.5 Bellow - CL Series
Get a Quote

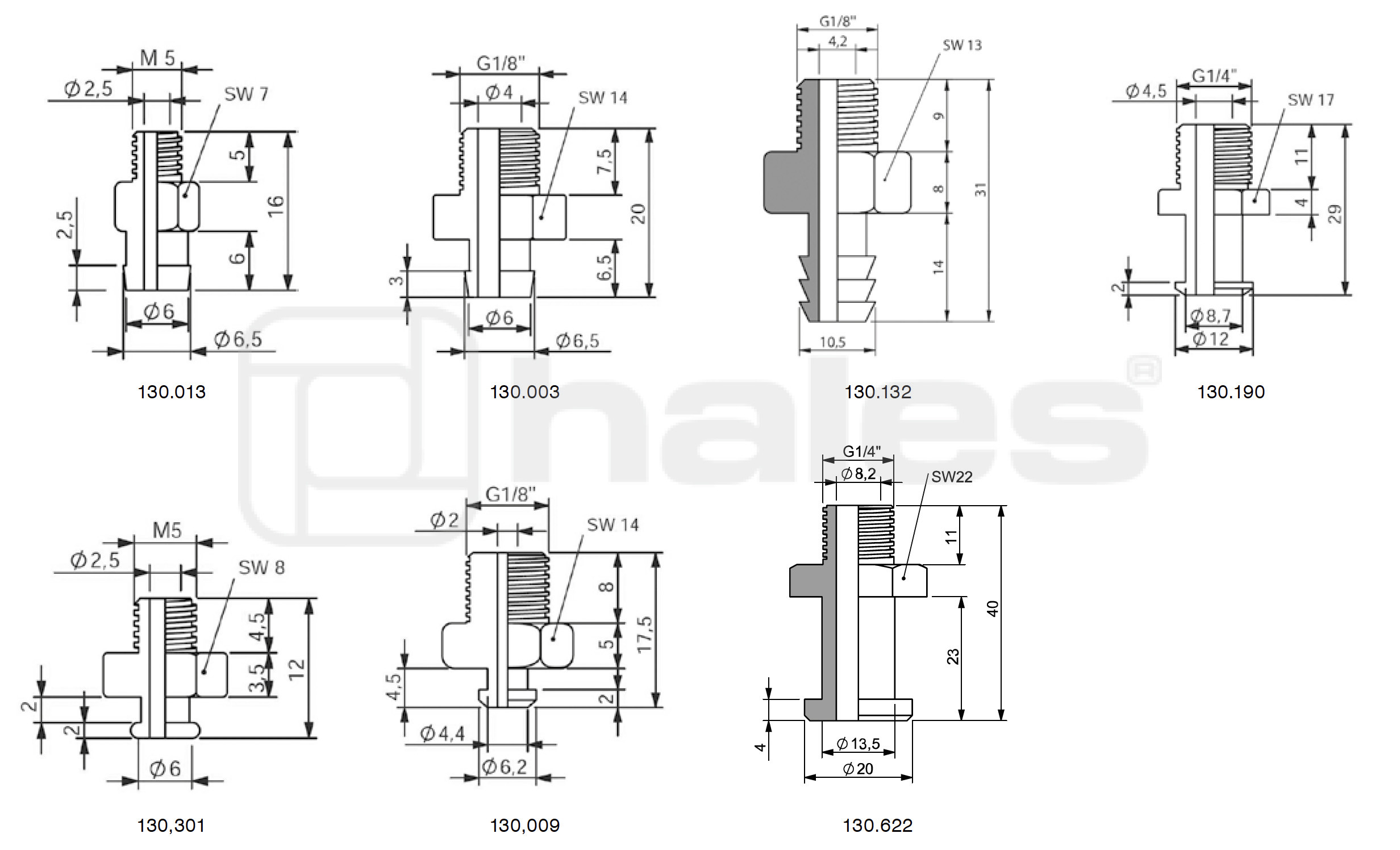

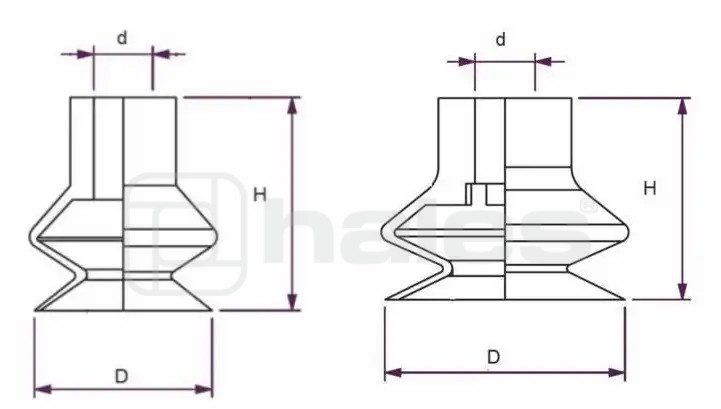

| SKU-Silicone | SKU-TempFlex | D | d | H | Fitting | Fitting | QTY |
|---|---|---|---|---|---|---|---|
| CL-1.5-06-S | CL-1.5-06-HT | 6 | 4 | 9 | 130.301 | 130.009 |
|
| CL-1.5-11-S | CL-1.5-11-HT | 11 | 5 | 16 | 130.013 | 130.003 |
|
| CL-1.5-14-S | CL-1.5-14-HT | 14 | 5 | 15 | 130.013 | 130.003 |
|
| CL-1.5-16-S | CL-1.5-16-HT | 16 | 5 | 19 | 130.013 | 130.003 |
|
| CL-1.5-20-S | CL-1.5-20-HT | 20 | 4 | 16 | 130.013 | 130.003 |
|
| CL-1.5-25-S | CL-1.5-25-HT | 25 | 4 | 23 | 130.013 | 130.003 |
|
| CL-1.5-30-S | CL-1.5-30-HT | 33 | 8 | 28 | 130.132 | 130.190 |
|
| CL-1.5-43-S | CL-1.5-43-HT | 43 | 8 | 28 | 130.132 | 130.190 |
|
| CL-1.5-53-S | CL-1.5-53-HT | 53 | 8 | 34 | 130.132 | 130.190 |
|
| CL-1.5-63-S | CL-1.5-63-HT | 63 | 8 | 34 | 130.132 | 130.190 |
|
| CL-1.5-78-S | CL-1.5-78-HT | 78 | 12 | 47 | 130.622 | - |
|
