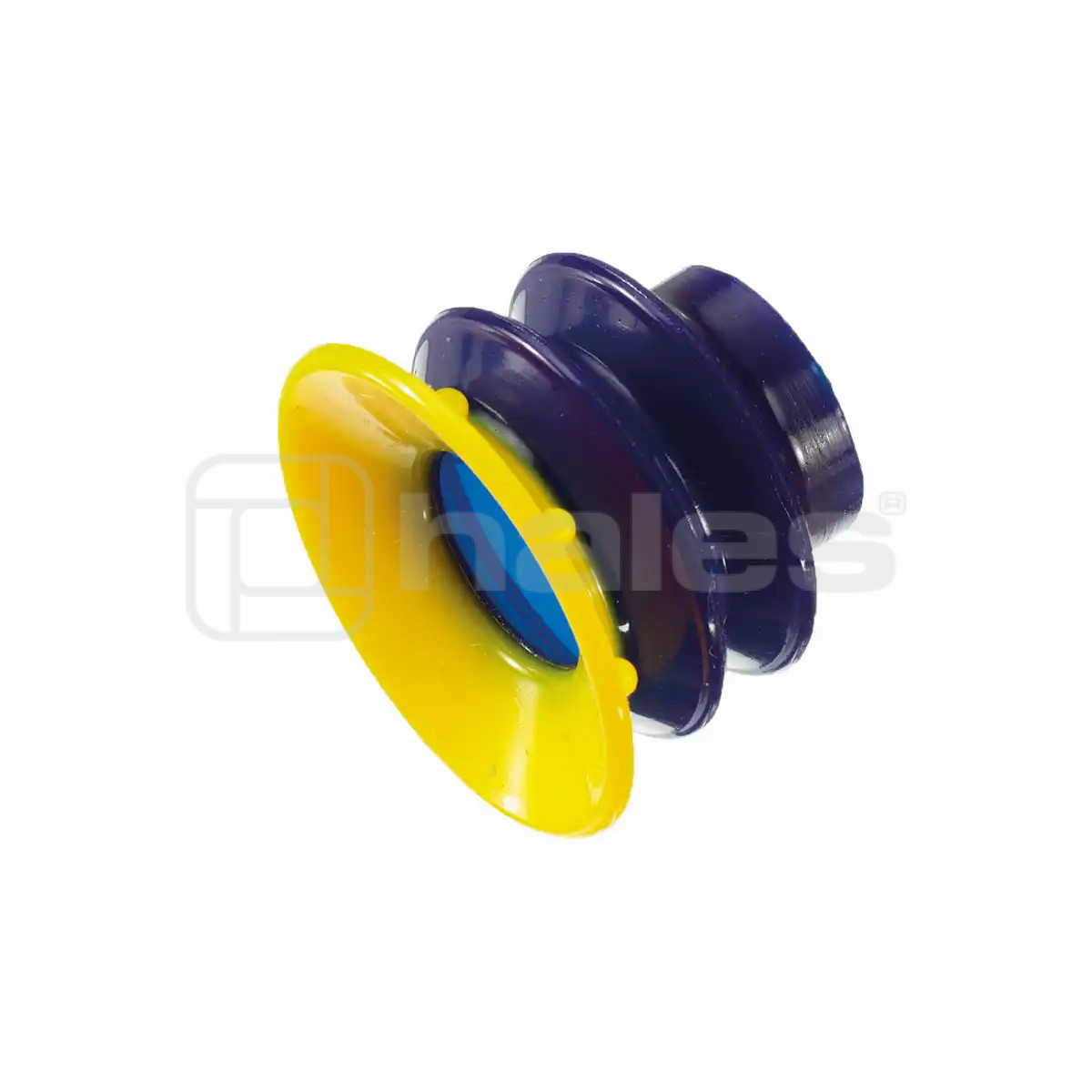

Vacuum Cups 2.5 Bellow - B Seeries Multiflex
Multiflex vacuum cups offer outstanding advantages
• Extremely high wear resistance
• Very high lifting force
• Best static friction qualities
• No sticking tendency
• Elasticity remains unchanged for minus temperatures
• Working temperatures from -20°C to + 80°C
• Anti marking
Get a Quote

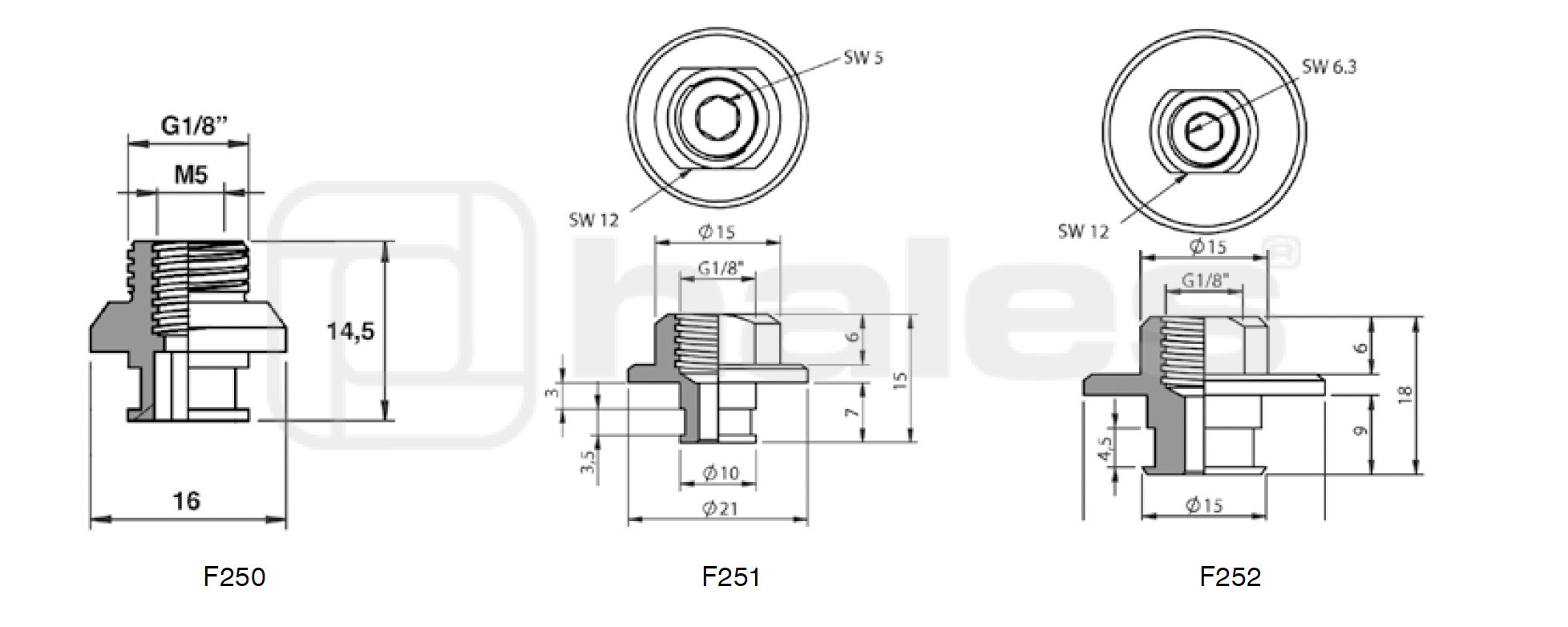

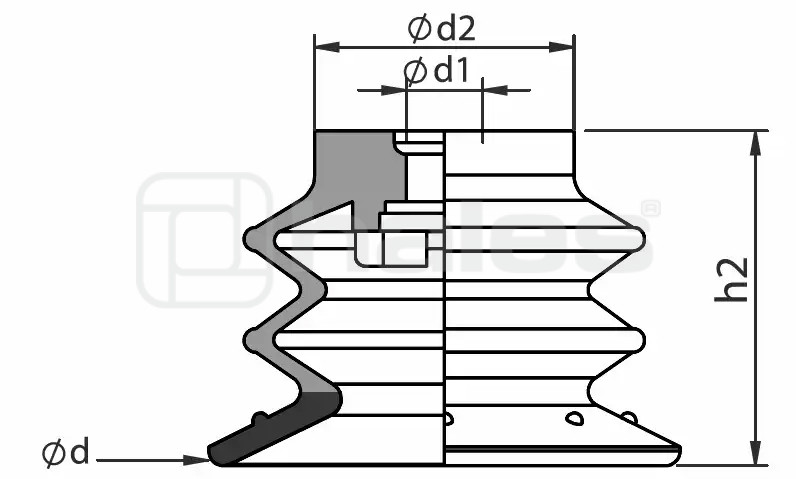

| SKU | d | d1 | d2 | h2 | Hardness | Fitting | QTY |
|---|---|---|---|---|---|---|---|
| B25-20MF | 20,5 | 5 | 12 | 14,8 | 30/60 | F250 |
|
| B25-25MF | 26 | 5 | 15,4 | 18,9 | 30/60 | F250 |
|
| B25-30MF | 30 | 5 | 16,5 | 21,3 | 30/60 | F250 |
|
| B25-35MF | 35 | 6,5 | 21 | 25,63 | 30/60 | F251 |
|
| B25-40MF | 40 | 6,5 | 22 | 28,4 | 30/60 | F251 |
|
| B25-50MF | 50 | 10,5 | 27,5 | 35,5 | 30/60 | F252 |
|
