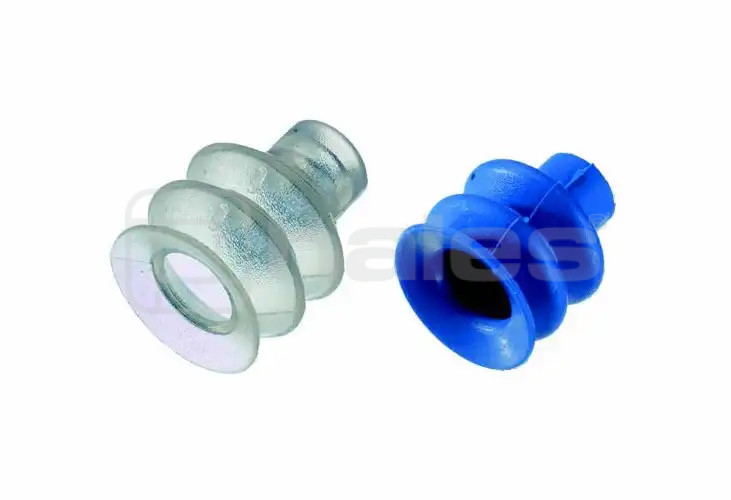

Vacuum Cups 2.5 Bellow - CL Series
Get a Quote

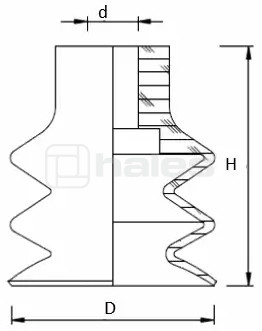

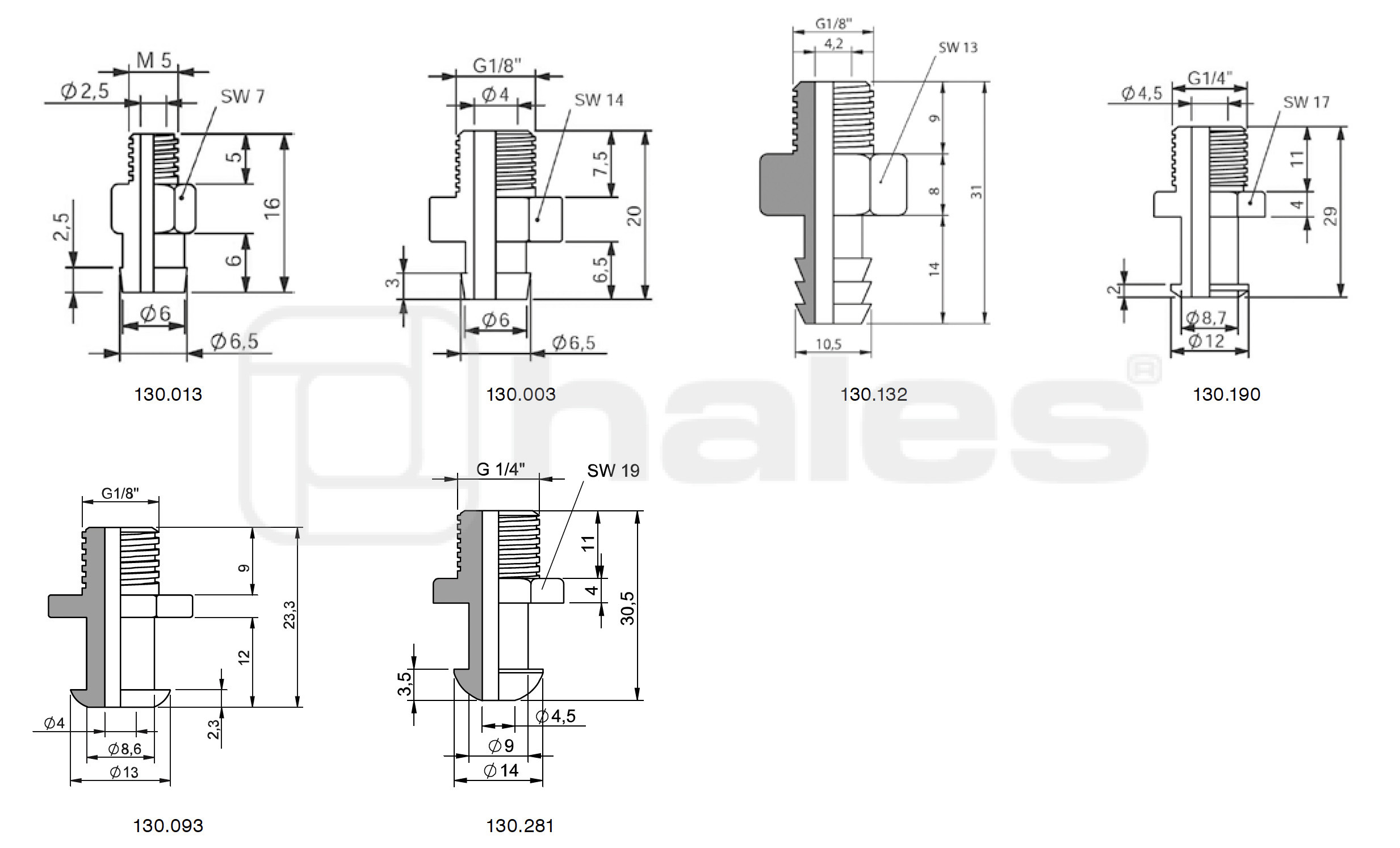

| SKU-Silicone | SKU-TempFlex | D | d | H | Fitting | Fitting | QTY |
|---|---|---|---|---|---|---|---|
| CL-2.5-5 | CL-2.5-5-HT | 5 | 4 | 14 | 130.013 | 130.003 |
|
| CL-2.5-7 | CL-2.5-7-HT | 7 | 3,8 | 14 | 130.013 | 130.003 |
|
| CL-2.5-9 | CL-2.5-9-HT | 9 | 4 | 15 | 130.013 | 130.003 |
|
| CL-2.5-12 | CL-2.5-12-HT | 12 | 5 | 21 | 130.013 | 130.003 |
|
| CL-2.5-14 | CL-2.5-14-HT | 14 | 4 | 22 | 130.013 | 130.003 |
|
| CL-2.5-20 | CL-2.5-20-HT | 20 | 4,5 | 23 | 130.013 | 130.003 |
|
| CL-2.5-25 | CL-2.5-25-HT | 25 | 4 | 34 | 130.013 | 130.003 |
|
| CL-2.5-32 | CL-2.5-32-HT | 32 | 8 | 37 | 130.132 | 130.190 |
|
| CL-2.5-42 | CL-2.5-42-HT | 42 | 8 | 46 | 130.132 | 130.190 |
|
| CL-2.5-52 | CL-2.5-52-HT | 52 | 8 | 49 | 130.132 | 130.190 |
|
| CL-2.5-62 | CL-2.5-62-HT | 62 | 9 | 53 | 130.093 | 130.281 |
|
