Male Brass Connectors

Male Brass Connectors

Male Brass Connectors.
Available in 200, 300, 500 series.
CM352, CM353 are also available with internal valve, specify "V"

Get a quote

Get a Quote

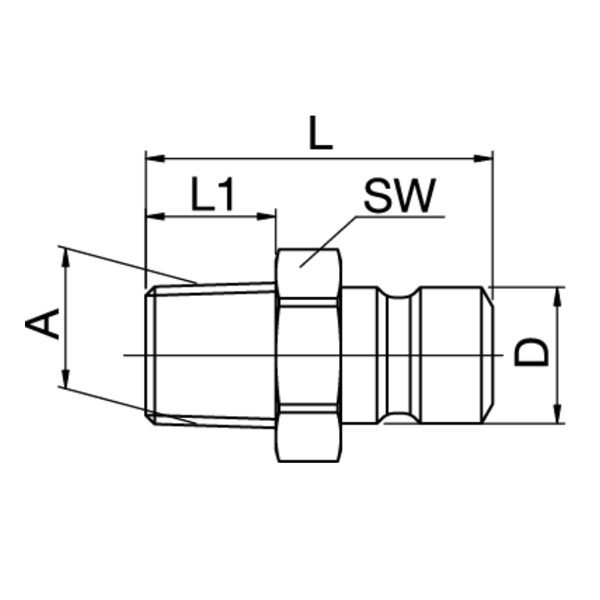

SKU R (BSPT) Thread A d1 d H L (Overall Length) Type QTY
CM251 1/8 22 9.5 6 17 25mm
CM252 1/4 26 9.5 6 19 29mm
CM253 3/8 30 9.5 6 19 30mm
CM351 1/8 26 13.5 6 25 35mm
CM352 1/4 26 13.5 9 25 35mm with internal valve, specify ''V''
CM353 3/8 30 13.5 9 26 38mm with internal valve, specify ''V''
CM354 1/2 37 13.5 9 28 42mm
CM552 1/4 30 20 9 37 41mm
CM553 3/8 32 20 12 37 41mm
CM554 1/2 32 20 15 38 39mm
CM556 3/4 38 20 15 38 45mm
