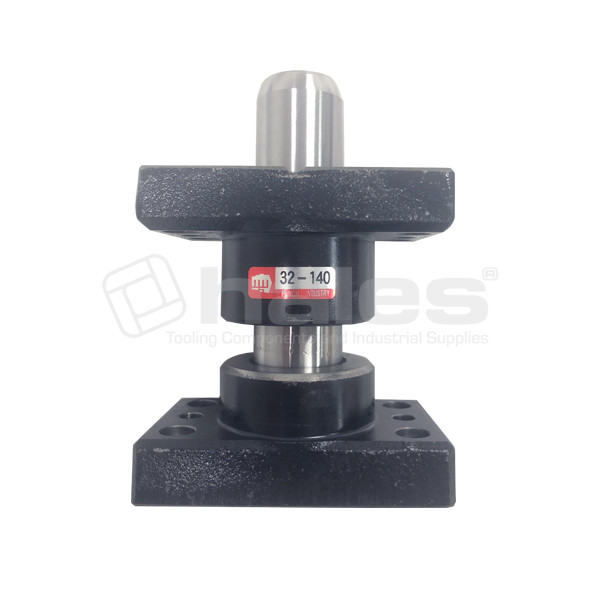

Oil-Less Bolt-on Pin and Bush Assemblies
When assembling, two dowel pins are to be fitted in guide bush and holder.
Please note: dowels and screws are included in assembly
Materials:
Guide Post: Deep core strength, case hardened materials.
Holder: Automotive high alloyed iron.
Guide Bush: Automotive high alloyed iron with solid lubricant.
Get a Quote
SKU | A | B | L | H1 | H2 | a | b | T | d1 diameter | eH7 | screw 8pcs | dowel 4pcs | QTY |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P-SGR25-80 | 84 | 48 | 80 | 30 | 45 | 66 | 30 | 20 | 9 | +0.015 8.0 | M8x35 | 8x30 |
|
P-SGR25-100 | 84 | 48 | 100 | 30 | 45 | 66 | 30 | 20 | 9 | +0.015 8.0 | M8x35 | 8x30 |
|
P-SGR25-120 | 84 | 48 | 120 | 30 | 45 | 66 | 30 | 20 | 9 | +0.015 8.0 | M8x35 | 8x30 |
|
P-SGR32-120 | 100 | 58 | 120 | 40 | 50 | 76 | 36 | 20 | 11 | +0.015 8.0 | M10x40 | 8x30 |
|
P-SGR32-140 | 100 | 58 | 140 | 40 | 50 | 76 | 36 | 20 | 11 | +0.015 8.0 | M10x40 | 8x30 |
|
P-SGR32-160 | 100 | 58 | 160 | 40 | 50 | 76 | 36 | 20 | 11 | +0.015 8.0 | M10x40 | 8x30 |
|
P-SGR38-120 | 130 | 75 | 120 | 50 | 60 | 100 | 44 | 25 | 11 | +0.015 10.0 | M10x45 | 10x40 |
|
P-SGR38-140 | 130 | 75 | 140 | 50 | 60 | 100 | 44 | 25 | 11 | +0.015 10.0 | M10x45 | 10x40 |
|
P-SGR38-160 | 130 | 75 | 160 | 50 | 60 | 100 | 44 | 25 | 11 | +0.015 10.0 | M10x45 | 10x40 |
|
P-SGR38-180 | 130 | 75 | 180 | 50 | 60 | 100 | 44 | 25 | 11 | +0.015 10.0 | M10x45 | 10x40 |
|
P-SGR50-160 | 155 | 90 | 160 | 65 | 85 | 125 | 60 | 25 | 14 | +0.015 10.0 | M12x50 | 10x40 |
|
P-SGR50-200 | 155 | 90 | 200 | 65 | 85 | 125 | 60 | 25 | 14 | +0.015 10.0 | M12x50 | 10x40 |
|
P-SGR50-250 | 155 | 90 | 250 | 65 | 85 | 125 | 60 | 25 | 14 | +0.015 10.0 | M12x50 | 10x40 |
|
P-SGR50-300 | 155 | 90 | 300 | 65 | 85 | 125 | 60 | 25 | 14 | +0.015 10.0 | M12x50 | 10x40 |
|
P-SGR60-200 | 190 | 120 | 200 | 75 | 100 | 150 | 80 | 30 | 18 | +0.018 13.0 | M16x60 | 13x50 |
|
P-SGR60-250 | 190 | 120 | 250 | 75 | 100 | 150 | 80 | 30 | 18 | +0.018 13.0 | M16x60 | 13x50 |
|
P-SGR60-300 | 190 | 120 | 300 | 75 | 100 | 150 | 80 | 30 | 18 | +0.018 13.0 | M16x60 | 13x50 |
|
P-SGR80-250 | 230 | 150 | 250 | 100 | 130 | 180 | 110 | 35 | 22 | +0.018 16.0 | M20x75 | 13x50 |
|
P-SGR80-300 | 230 | 150 | 300 | 100 | 130 | 180 | 110 | 35 | 22 | +0.018 16.0 | M20x75 | 13x50 |
|
P-SGR80-350 | 230 | 150 | 350 | 100 | 130 | 180 | 110 | 35 | 22 | +0.018 16.0 | M20x75 | 13x50 |
|
